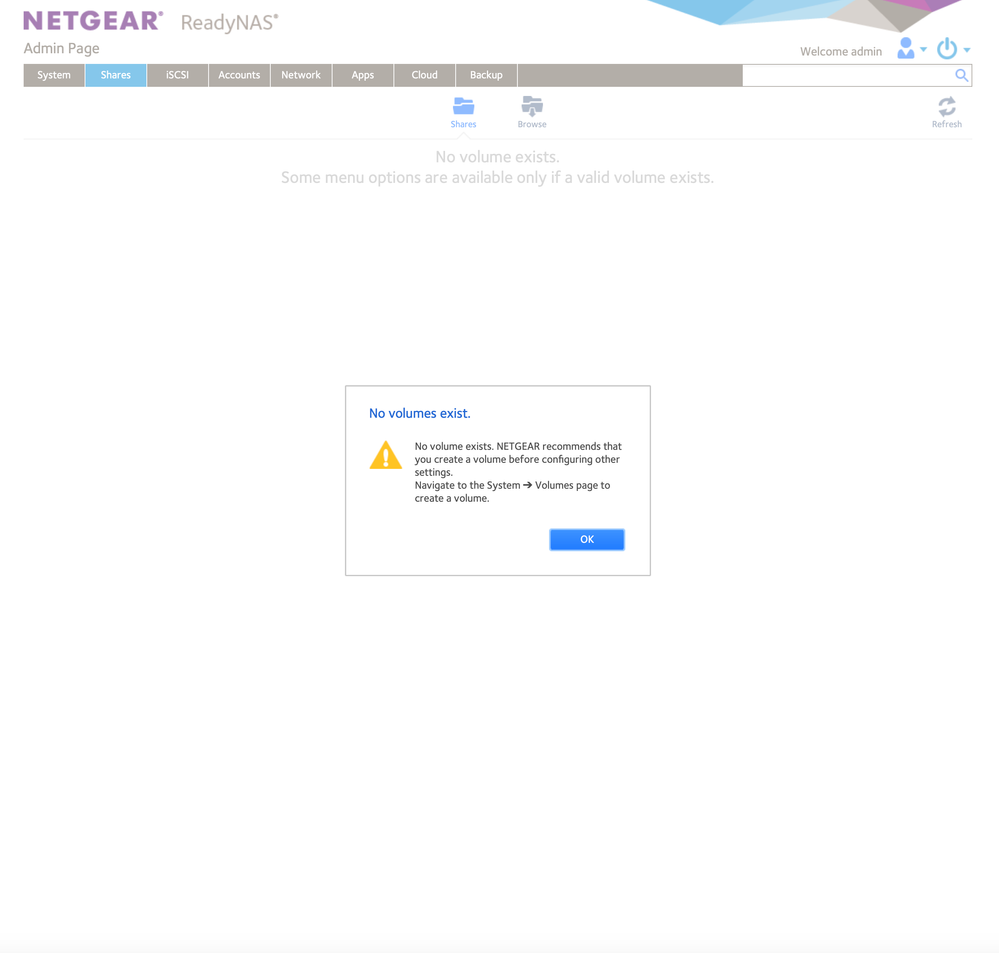

No volume exists

Hi

Would you mind downloading logs and upload them to Google link or similar. PM me the link and I can take a look for you.

Cheers



Hi Issam99999



Thanks for sending over the logs.

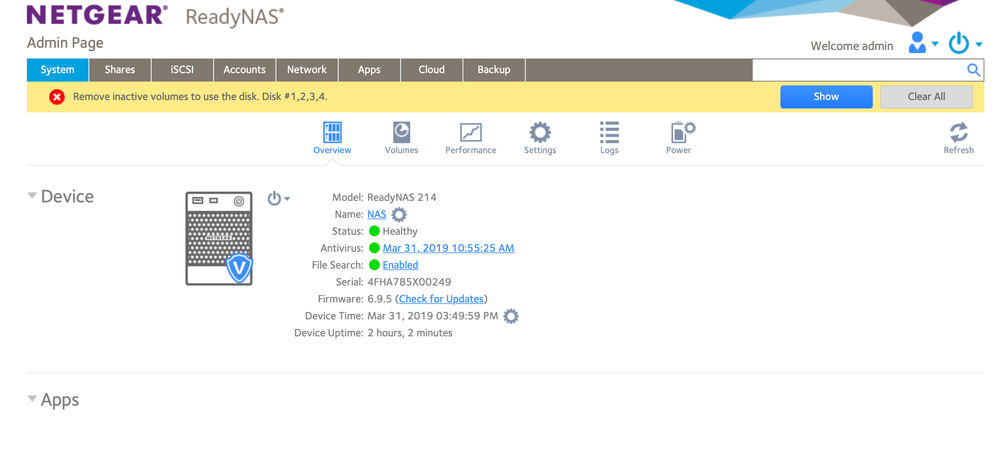

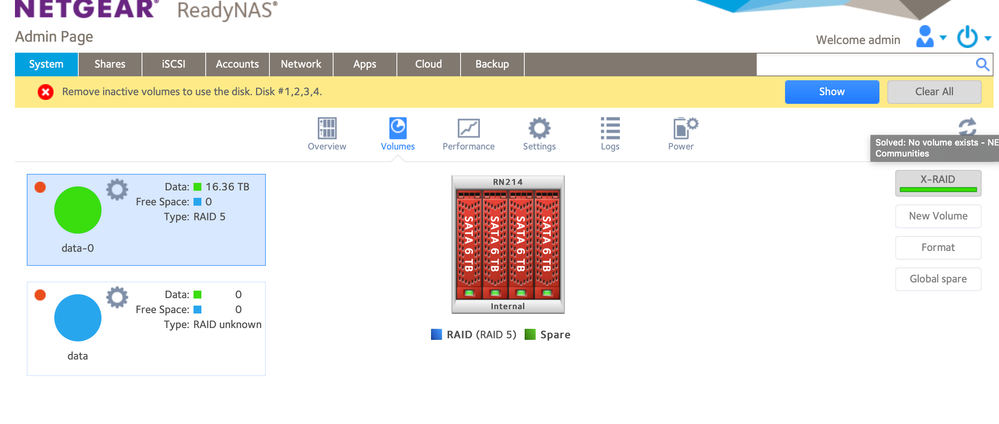

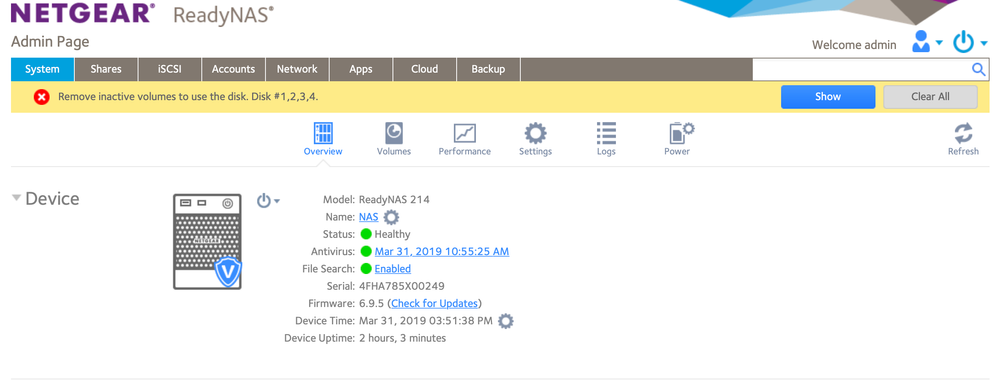

The reason for the "Remove Inactive Volumes" error is because the data volume cannot mount. In your case, this happens because the data raid is not running at all.

Personalities : [raid0] [raid1] [raid10] [raid6] [raid5] [raid4]
md1 : active raid6 sdd2[3] sdc2[2] sdb2[1] sda2[0]
1047424 blocks super 1.2 level 6, 64k chunk, algorithm 2 [4/4] [UUUU] <<<=== Linux swap space raid

md0 : active raid1 sda1[5] sdb1[1] sdd1[4] sdc1[2]
4190208 blocks super 1.2 [4/4] [UUUU] <<<=== ReadyNAS OS raid

<<<=== Missing data raid (md127)

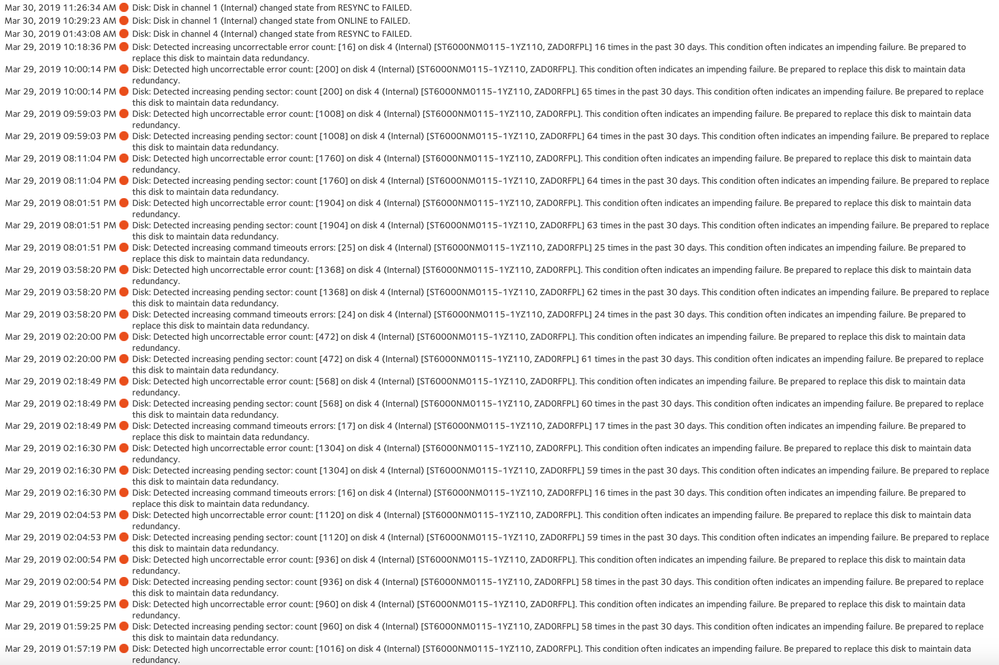

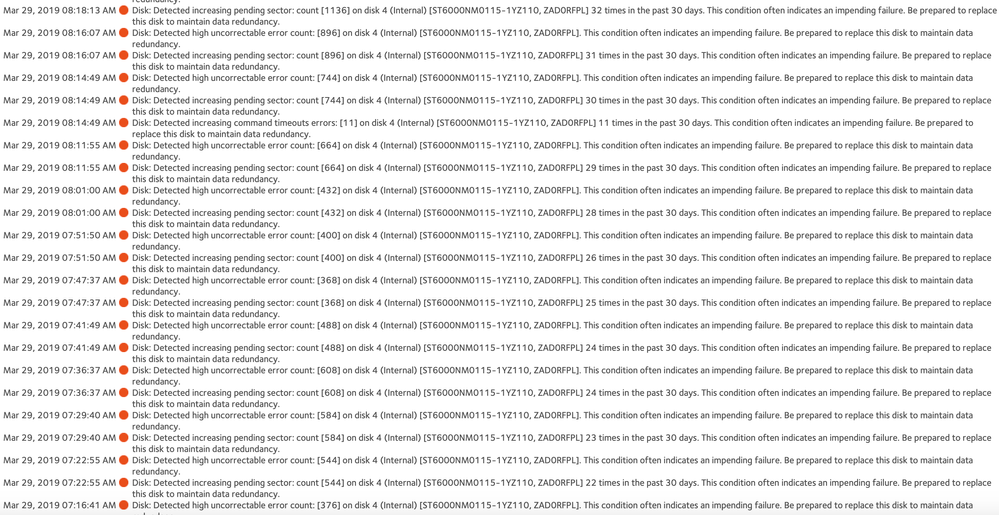

You have two dodgy disks in the NAS and this is the reason. Both those disks were kicked from the raid. This will result in a double disk failure in a raid5, rending the raid "dead". Disk 4 stated to show signs of errors around the 3rd of March and disk 1 started to fail around the 16th of March. Errors on those disks increased as time went on and the disks became worse and worse until this happened in the space of a day.

[19/03/29 16:43:08 PDT] err:disk:LOGMSG_ZFS_DISK_STATUS_CHANGED Disk in channel 4 (Internal) changed state from RESYNC to FAILED. <<<=== Disk 4 fails. The raid is now degraded.
[19/03/30 01:29:23 PDT] err:disk:LOGMSG_ZFS_DISK_STATUS_CHANGED Disk in channel 1 (Internal) changed state from ONLINE to FAILED. <<<=== Disk 1 fails. Second disk failure and the raid stops.



The raid has been re-syncing multiple times, likely due to the disks dropping in out of the raid as both are faulty. The additional raid syncs caused extra strain on the already failing disks, accelerating the degradation process.



So, at this point you would need to try and clone either disk 1 or disk 4 (likely disk 1 as that disk dropped out last) and then try and manually assemble the raid. This is certainly possible to try, given that the disks gets no worse. However, unless you are very comfortable with Linux and with mdadm raid mechanics, I would advise to contact NETGEAR to discuss data recovery contract. It is going to cost a few hundred bucks so depends on how important the data is.

If you have a backup then you get two fresh disks to replace the bad ones --> factory reset and start over --> then restore from backups.

The peculiar thing here is that the disks are quite young. It is very uncommon for disks to fail at this age and thus I suspect that they were faulty from the beginning. Additionally, the majority of these disk failures are mechanical failures inside the drives and those cannot be caused by the NAS itself. If these disks were bought separately from the NAS, the manufacturer will certainly have warranty on them, judging by the young age of these disks. If the disks came with the NAS you should also be covered by NETGEAR as these are very new disks.



Here is the state of the disks.

Device: sda
Controller: 0
Channel: 0 <<<=== Disk 1
Model: ST6000NM0115-1YZ110
Serial: (masked)
Firmware: SN04
Class: SATA
RPM: 7200
Sectors: 11721045168
Pool: data-0
PoolType: RAID 5
PoolState: 5
PoolHostId: (masked)
Health data
ATA Error Count: 189
Reallocated Sectors: 123
Reallocation Events: 123
Spin Retry Count: 0
End-to-End Errors: 3
Command Timeouts: 6
Current Pending Sector Count: 0
Uncorrectable Sector Count: 0
Temperature: 48
Start/Stop Count: 71
Power-On Hours: 421
Power Cycle Count: 71
Load Cycle Count: 207

Device: sdd
Controller: 0
Channel: 3 <<<=== Disk 4
Model: ST6000NM0115-1YZ110
Serial: (masked)
Firmware: SN04
Class: SATA
RPM: 7200
Sectors: 11721045168
Pool: data-0
PoolType: RAID 5
PoolState: 5
PoolHostId: (masked)
Health data
ATA Error Count: 8875
Reallocated Sectors: 7565
Reallocation Events: 7565
Spin Retry Count: 0
End-to-End Errors: 0
Command Timeouts: 26
Current Pending Sector Count: 8
Uncorrectable Sector Count: 8
Temperature: 49
Start/Stop Count: 71
Power-On Hours: 420
Power Cycle Count: 71
Load Cycle Count: 207



Sorry I could not bring you better news on this one :(



Cheers
