M4200-10MG-PoE+ ProSAFE 8-port 2.5 Gigabit L2+ : ICMP redirects does not work
Hi,
I configured static route to 10.80.0.10 via vlan interface 901 (192.168.210.254).
I expected that icmp replies coming from net 192.168.210.X to 10.80.0.10 would get icmp redirects back to 192.168.210.2 (next hop), but it does not happen, and regular icmp replies go egress from Netgear M4200.

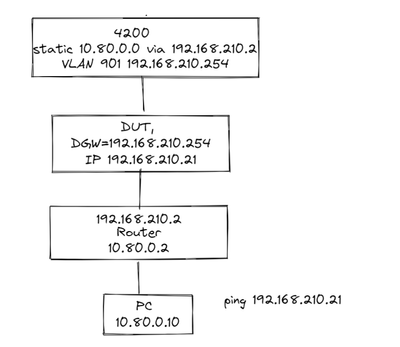

Diagram below, attached is configuration.
PC runs pings to DUT, DUT replies via its DGW (4200).
4200 does not send icmp redirects, but usual icmp replies.
Thank you
