Netgear GS748T VLAN Tagging
Hi,

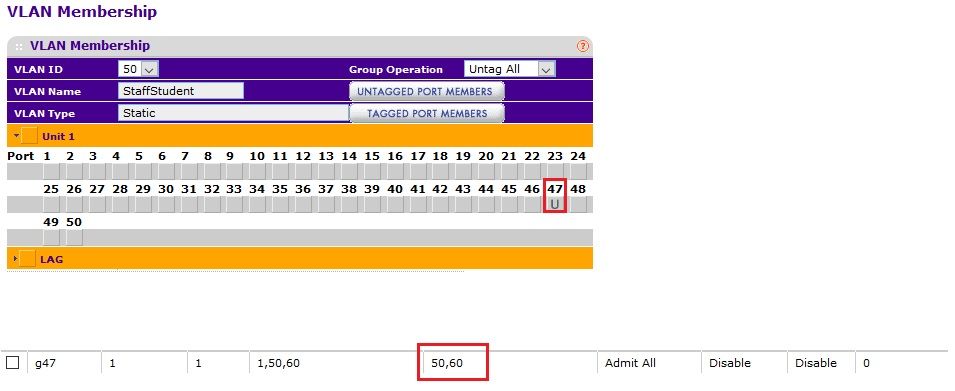

All of our managed switches are Netgear and majority are GS748T. I've been successfully adding VLANs and assigning memeberships. I've now come to one of the GS748Ts and when tagging a port with a VLAN, it puts a T in the box under the port number. After clicking the APPLY button, it changes the box from T to U (untagged). I've not yet tried rebooting or factory resetting the switch. Just wondering if anyone has come across this?
Checking on Port PVID Configuration it's showing that the port is tagged with the relevant VLANs. So not sure what to believe, the first screen or the second. The firmware version is 6.3.1.19
Many Thanks
Is this a port probably also member of a LAG? Have spotted that some models/firmware are not properly masking/hiding the tag information on the port level if these are also a member of a LAG.
2 Replies
Is this a port probably also member of a LAG? Have spotted that some models/firmware are not properly masking/hiding the tag information on the port level if these are also a member of a LAG.
Thank you for your input. It was the fact that the port was part of a LAG. So now I've tagged the LAG instead of the port.
Thank you
