GS110TP/GS105EPE - Set up VLAN with Trunk
Hi,
i'm trying to configure a vlan trunk over three switches.core switch is a unifi usw-24p on port 20 -> is a gs105Epe on port 3 of the gs105pe (uplink port 5) is a gs110tp switch (uplink port 1) . i configure a vlan 40 on port 8 of the 110tp and also on port 1 of the 105pe. I see the pc of vlan 40 from the gs105pe but not from the 110tp. Is this possible or is the gs105pe the bottleneck in my design?
thanks in advance!
Thank you very very much for your kindly assistance! After a while of searching i found that the GS110TP didn't saved my VLAN Settings ( i don't really now why) and so i was unable to get my devices in the right configuration. Okay now it works. If i try your advice (vlan1 tagged) then i'm unable to reach the webinterfaces of the switches. The access only work if i untag vlan1. Found nothing in the documentation about this behaviour... Again, thanks a lot!
6 Replies
The bottleneck would be in the single GbE of the cascaded switches - but that's up to your design. I would go for a star configuration instead, or deploy some additional trunking.
All that is not relevant - with an 802.1Q VLAN the trunks are commonly tagged, and the related access ports are configured untagged.thank you very much for the really quick answer! but threre is no chance for a star toplogy and i have to build the switch cascade.

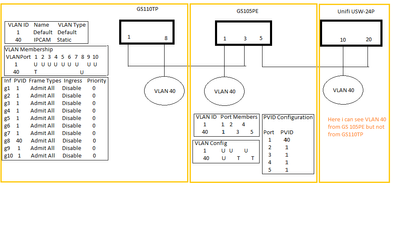

Okay, just for clarifying i attached a illustration. The problem is that i can't reach the GS110TP vlan 40 from the unifi switch. If assume i make a mistake or the GS105PE is not capable for that... is the GS105PE ready for my purpose?
Both Netgear swiches are fully 802.1Q VLAN compliant. Are all switches in 802.1Q VLAN mode, with the trunking/cascading ports configured to be tagged (T) for all VLANs?
Yes, i configured the VLAN under the 802.1Q options. If you look on my picture you see the tagging i made. Do you think thats correct?
