IGMP snooping: Declare port and VLAN or not?

My ISP sends TV stream (VLAN4) and data (VLAN6) to my FTTH on which my router is connected. Behind my router I got my Netgear GS108Ev3.

On that switch port 7 and 8 are connected to my two televisions and port 2-6 are connected to other devices for data. Port 1 is connected to my router.

To prevent TV stream sending to all my devices on port 2-6, is it that simple to enable IGMP snooping? Or do I need to configure anything in the VLAN tab? Now Basic Port-based VLAN Status and Basic 802.1Q VLAN Status are set to Disable.

So what I want is VLAN4 only to port 7 and 8 (and port 1 for my router off course). And VLAN6 to all 8 ports.

Installation

Solutions

JohnC_V
Jul 02, 2018
stuif,

I would like to have a follow up on this thread. Please let us know if everything is ok now or you still need further assistance.

If ever your concern has been addressed or resolved, I encourage you to mark the appropriate reply as the “Accepted Solution” so others can be confident in benefiting from the solution. The NETGEAR Community looks forward to hearing from you and being a helpful resource in the future!

Regards,

5 Replies

JohnC_V
NETGEAR Moderator
Jun 27, 2018
Hi stuif,

Welcome to our community! :)

Well, technically, it depends. It is much easier to configure the switch with a port-based VLAN and most likely if you want those ports not to communicate to other ports. Here is an article that may help you understand and configure port-based VLAN.

Regards,
JohnC_V
NETGEAR Moderator
Jul 02, 2018
stuif,

I would like to have a follow up on this thread. Please let us know if everything is ok now or you still need further assistance.

If ever your concern has been addressed or resolved, I encourage you to mark the appropriate reply as the “Accepted Solution” so others can be confident in benefiting from the solution. The NETGEAR Community looks forward to hearing from you and being a helpful resource in the future!

Regards,
stuif
Aspirant
Jul 02, 2018
Hi JohnCarloV,

Thanks for your reply! And sorry for my late reaction. I was too busy to try it out.

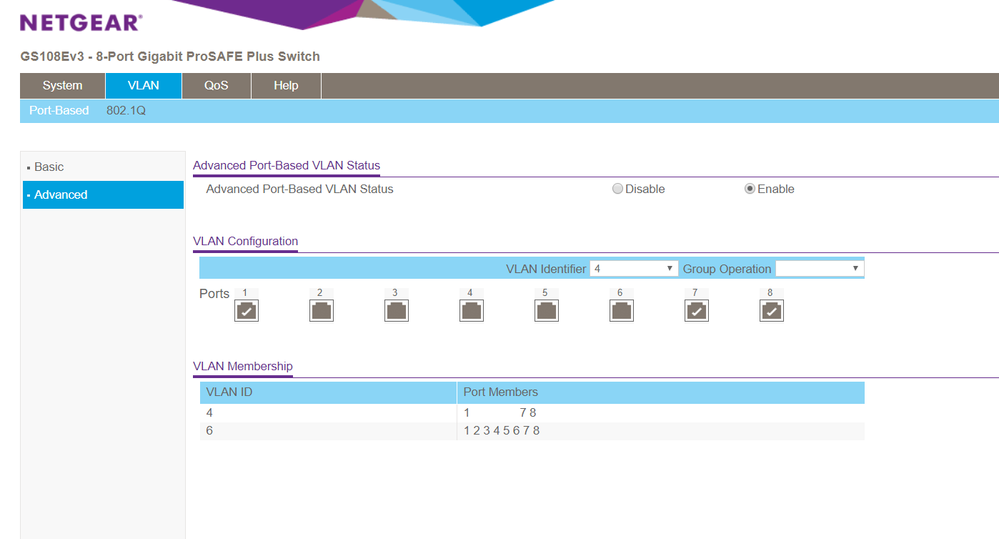

I now set it up using the manual, but not sure if it's working correct. See here a screenshot:

Is there a way to test this?

Regards,

Stuif
- JohnC_V
  NETGEAR Moderator
  Jul 02, 2018
  stuif,

  Yes, you can try to do a ping test so that you may know if it's still communicating with your TV. If not, then it is a success. Have you checked the article on my previous reply?

  Regards,
  - stuif
    Aspirant
    Jul 03, 2018
    Yes, your article helped my configging this. It is working now. I tested it to change VLAN ID4 to other ports my TV's are not using. Then the TV stops.

    Testing using ping is not working, cause ping is using VLAN ID6 and that's open on all ports.

    Thanks for your help!
