VLAN between GS116Ev2 & PowerConnect 6248

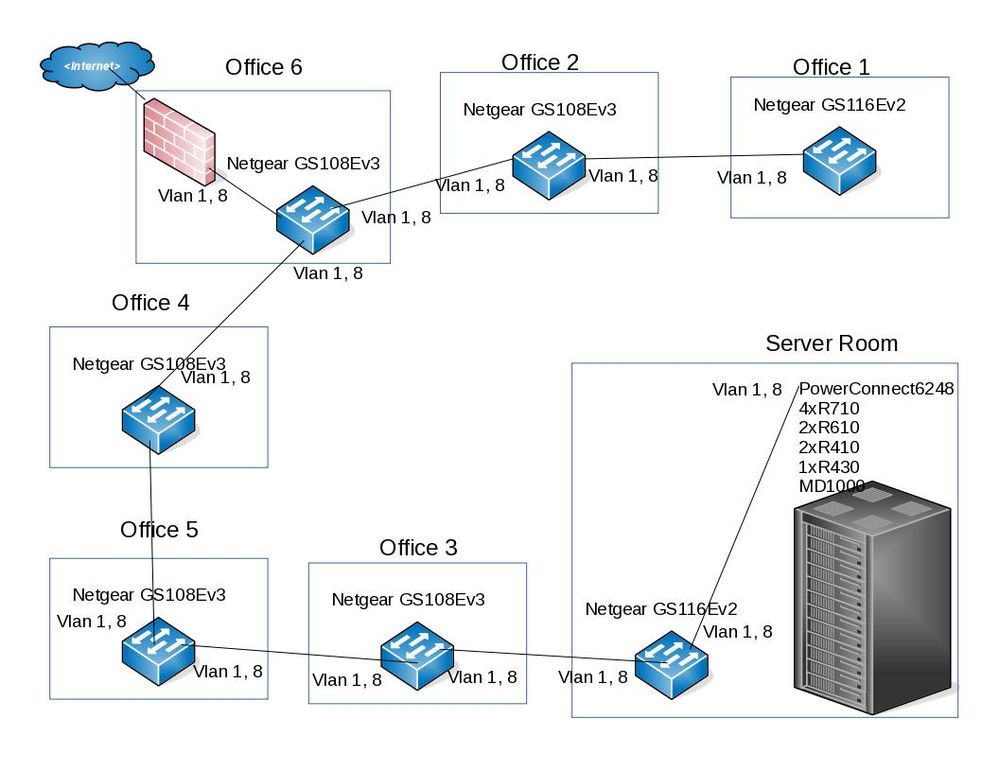

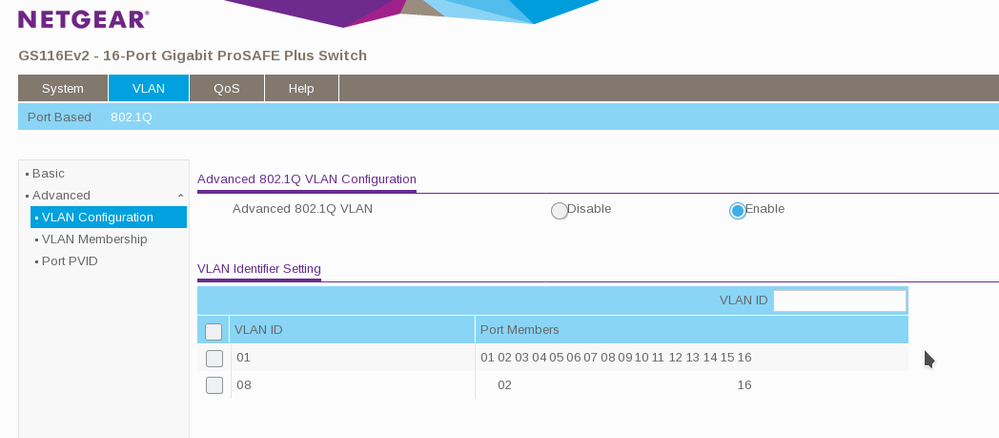

Hello.  I have the attached network with netgear vlan config (above) on all the netgear switches.

Vlan 1 - 192.168.1

Vlan 8 - 192.168.9

I can ping 192.168.9.1 (FW vlan interface) from any Netgear switch.  My problem is I cannot ping 192.168.9 (vlan 8) from powerconnect 6248 switch or from any server hanging off of 6248.  I can get to any 192.168.1 computer from any server that's connected to the 6248.  Here is the interface config for port that is connected to server room netgear switch:



interface ethernet 1/g25
description "Port to outside switch.."
switchport mode general
switchport general allowed vlan add 8 tagged
exit

Any help would be greatly appreciated.



Thanks



-2tpazzo





  • I finally got this working. Didn't have to do anything else with netgear switches.  On Dell 62XX switches the management VLAN is 1 and the switch refuses to route that vlan so what you have to is create a bogus vlan,  Here is the full 6248 config:

    !Current Configuration:
    !System Description "PowerConnect 6248, 3.3.15.1, VxWorks 6.5"
    !System Software Version 3.3.15.1
    !Cut-through mode is configured as disabled
    !
    configure
    vlan database
    vlan 8,99
    vlan routing 8 1
    vlan routing 1 2
    exit
    hostname "BIGSWITCH1"
    sntp server 192.168.1.1
    clock summer-time recurring USA zone "PSDT"
    clock timezone -8 minutes 0
    stack
    member 1 2
    exit
    !
    ! Right here is where I had to remove the management vlan to bogus VLAN.
    !
    ip address none
    ip address vlan 99
    ip domain-name xxxao.com
    logging 192.168.1.184
    description "remote log server"
    exit
    !
    ! According to the 6200 Configuration guide on page 76:
    ! In order for the VLAN to function as a routing interface,
    ! you MUST enable routing on the VLAN and ON the switch.  This cost me 2 hours.
    !
    ip routing
    ip route 0.0.0.0 0.0.0.0 192.168.1.1
    interface vlan 1
    routing
    ip address 192.168.1.252 255.255.255.0
    exit
    interface vlan 8
    name "iDRAC"
    routing
    ip address 192.168.9.2 255.255.255.0
    exit
    username "admin" password <snipped out> level 15 encrypted
    line ssh
    history size 216
    exit
    ip ssh server
    no spanning-tree
    !
    ! VLAN 1 is default lan---untagged, so have to tag it.
    !
    interface ethernet 1/g25
    description "Port to Netgear."
    switchport mode general
    switchport general allowed vlan add 8 tagged
    switchport general allowed vlan add 1 tagged
    exit
    !
    interface ethernet 1/g28
    switchport access vlan 8
    exit
    !
    interface ethernet 1/g37
    switchport access vlan 8
    exit
    enable password <snip> encrypted
    exit



4 Replies

  • schumaku's avatar
    schumaku
    Guru - Experienced User



    Are the trunk ports (the ones used for the switch daisy chain - poor users in the lower numbered offices) and the one to the other switch configured as VLAN trunk ports with all VLAN tagged?



    • TuttiPazzo's avatar
      TuttiPazzo
      Aspirant

      All the netgears VLAN are configured the same as the GS116Ev2

      • schumaku's avatar
        schumaku
        Guru - Experienced User

        Show the VLAN Memberships page for VLAN 1 and 8 on the Netgear switches.
