Multiple VLAN on WNDAP360

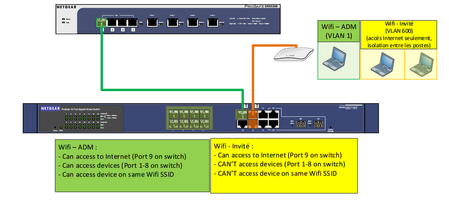

Hi, I'm in trouble to end my configuration. Here's the network structure : Goal : - Add a Guest Wifi (VLAN 600) which can only go on Internet. Hardware : - Netgear SRX5308 [4.3.4-2] - Net...
The WNDAP360 will not be used as a DHCP server for any VLAN. The DHCP server for both VLANs is going to be the SRX5308.
Kindly access the article below and use it as reference guide:
How do I set up one or more VLANs between a NETGEAR ProSAFE firewall and a smart switch?
Regards,
DaneA
NETGEAR Community Team
Hi nolme,
Let us isolate the problem. Kindly read the steps I suggest below as well as answer the questions indicated:
a. It seems that VLAN 1 configured on the GS716Tv3 switch gets its private IP address from the DHCP server on VLAN 1 that is configured by default on the SRX5308. Have you created VLAN 600 on the SRX5308?
b. Based from the screenshot above, it shows that port 9 of the GS716Tv3 switch is connected to the SRX5308, it should be set as a tagged (T) port on both VLAN 1 and VLAN 600 with a PVID = 1.
c. It shows that ports 11 and 12 are both connected to the WNDAP360. There is only one LAN port on the WNDAP360. Which port is connected to the console port of the WNDAP360? Remove the other ethernet cable that is connected to the console port of the WNDAP360. As reference, kindly read pages 12-13 of the WNDAP360 reference manual here about the rear panel of the WNDAP360.
d. On the WNDAP360, did you create a wireless network for VLAN 600 which is the Guest Network? Kindly read pages 42-46 of the of the WNDAP360 reference manual here on how to configure and enable security profiles.
Regards,
DaneA
NETGEAR Community Team
