I need 220v power supply for RS700
I need 220v power supply for RS700.
I purchased RS700 US version and since it has big dc power jack, it is hard to find something like this.
any suggestion?
Hello all,
Netgear Support provided me with these details about the replacement AC adapter power cord for my RS700 router:
Product Code: 332-11480-02
Product Accessory: PA,19V,3.16A,NJ,PIE,LRI found a replacement AC adapter power cord on Amazon Canada and on Amazon USA. It is from a brand called T-Power.
Search for this on the USA site "T POWER 19V Charger for Netgear Orbi 960 970 Series Quad-Band WiFi 6E 7 Network Mesh RS700S".
Search for this on the Canada site "T Power 19V Charger for Netgear Orbi 960 970 RS700S"
It is almost half the price on the USA site if you have a forwarding service.
Looks like we can even share links, enjoy:
25 Replies
Replies have been turned off for this discussion
Ya, may need a power converter.
I don't think NG has 220v PS.
- Any similar model like nighthawk with same size dc jack? Any?
rhodan777 wrote:
I purchased RS700 US version and since it has big dc power jack...
You mean the plug that goes from the adapter into the router?
Netgear does not sell replacement power adapters in most markets. Any generic transformer will work, as long as it has the right volts, enough amps and a tip with the right (+/-) polarity and dimensions. (Look at the label on your device or the old adapter.)
The details you need should be on the old adapter, on a label on the device itself and in its manual.
You can find suitable adapters in all the usual places. Some will even list compatibility with different Netgear hardware.Some generic adapters come with a set of tips that will fit a range of different devices.

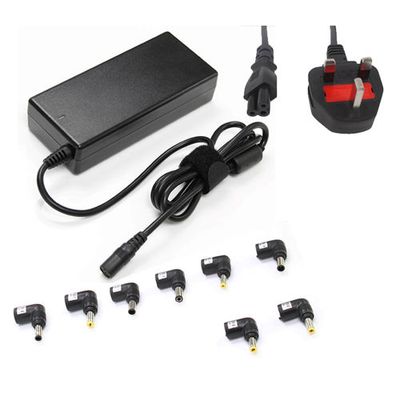

Generic adapter
Does you US adapter have the specifications on it? The manual for the RS700 says that the adapter for North America is "100-240V, 50/60 Hz input".
Many are 120/240 volt and you can just use an appropriate adapter to plug it into the wall socket.
19V/3.16A (60W) power adapters (also 90W variants) are readily available in the PC markets, the thin center pin intended to power a modem might not allow plugging generic units to the RS700 (or can be cut off) - better order from Netgear.
Bigger problem is that the RS700 US version is limited to FCC regulatory area, and it can't be changed easily. Legally, you are not allowed to operate the FCC version for example in Europe (wrong channel sets, wrong or lack of DFS and TPC). Depreciated.
Not sure if the RS has a thin or thick center pin. Some routers have a thick center pin.
Something to take in to account:
this seem right, 7~ mm dc jack.
Could you please name the model in the photo?
I may purchase the power supply for that model instead.
thanks in advance.
Was asked to post the picture of the power plug end and the socket on router so here we are... no pin in the middle of the plug.
Thank you jessejames87 !
Yes - depending on the wording, to some users the inner connector (where the small additional contact for the additional always-on power for modems and WoL is located) does look like a large center pin (reversed) to the common DC barrel plugs. This is where the confusion is coming from - leaving alone I have not seen these on standardized power supplies yet - what can make it difficult to locate third party alternate power supplies.
Was asked to post the picture of the power plug end and the socket on router so here we are... no pin in the middle of the plug.
Thanks jessejames87 for posting that. Confirms it's the larger center pin as I suspected. I see the pin is (+) as well. Glad that's still standard.
So maybe possible for the RAXE500 PS that could be compatible. Can you post a picture of the PS label from the RS700?

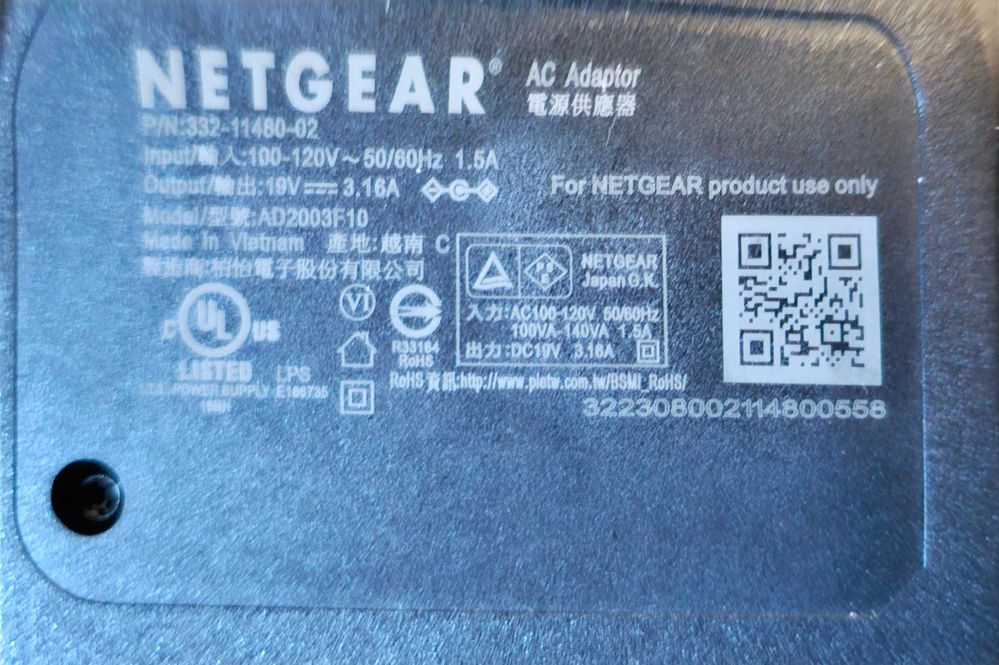

not the best photo but legible.
Hello all,
Netgear Support provided me with these details about the replacement AC adapter power cord for my RS700 router:
Product Code: 332-11480-02
Product Accessory: PA,19V,3.16A,NJ,PIE,LRI found a replacement AC adapter power cord on Amazon Canada and on Amazon USA. It is from a brand called T-Power.
Search for this on the USA site "T POWER 19V Charger for Netgear Orbi 960 970 Series Quad-Band WiFi 6E 7 Network Mesh RS700S".
Search for this on the Canada site "T Power 19V Charger for Netgear Orbi 960 970 RS700S"
It is almost half the price on the USA site if you have a forwarding service.
Looks like we can even share links, enjoy:
