Hi, I have a readynas 104 with 4 x 1tb drives inside. I have been having problems with booting the readynas after getting a no ip address error which I couldn't resolve. Is there any way I can read the files on each of the drives and transfer them to a windows laptop? I have a sata to usb attachment which connects the drives and they show up in 'disk management' with 3 partitions but each one shows that it has 927gb of free space. (image below, disk 1 being the drive from the NAS)I'm guessing these drives have a different file system so what would the best way to view and transfer the files on the drives? Many thanks.

Royalblue wrote: Just trying a reboot and it went quickly to 42% but has stalled there for the last 45 mins. Should I wait longer or try rebooting again? I would try booting the NAS in read-only mode. If that works, then the next step would be to make a backup.

What happens when you go to the admin interface? What errors, if any, are reported? This sounds like it could be a credentials issue. Did you attempt an OS re-install? If so, the admin password has changed to password, but any user passwords should remain the same.

Royalblue wrote: I can access the admin page without any problems. I get the following error message on the Admin page: remove inactive volumes to read the disk# 1,2,3,4 (With 4 red disks in the volumes tab) Which means that the volume is still not mounted (despite what you are seeing in windows file explorer) Disk 3 (serial number 54NWT7MNS) isn't doing that well - it has 16 ATA errors, and a very high spin retry count of 65536. Disk 4 (Serial number 54NS1YJNS) also has 28 ATA errors. ATA errors are issues with the SATA bus - so it's hard to tell if they are caused by the drive reporting them, or by something else. But we are seeing errors in dmesg.log [Fri Mar 15 11:17:22 2024] ata3.00: exception Emask 0x0 SAct 0x0 SErr 0x400000 action 0x6 frozen [Fri Mar 15 11:17:22 2024] ata3: SError: { Handshk } [Fri Mar 15 11:17:22 2024] ata3.00: failed command: WRITE DMA EXT [Fri Mar 15 11:17:22 2024] ata3.00: cmd 35/00:00:40:60:1a/00:08:00:00:00/e0 tag 4 dma 1048576 out res 40/00:01:00:00:00/00:00:00:00:00/00 Emask 0x4 (timeout) [Fri Mar 15 11:17:22 2024] ata3.00: status: { DRDY } and [Fri Mar 15 11:19:14 2024] ata2: SError: { Handshk } [Fri Mar 15 11:19:14 2024] ata2.00: failed command: WRITE DMA EXT [Fri Mar 15 11:19:14 2024] ata2.00: cmd 35/00:40:00:28:80/00:05:00:00:00/e0 tag 17 dma 688128 out res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x4 (timeout) [Fri Mar 15 11:19:14 2024] ata2.00: status: { DRDY } You also have a very full OS partition Mar 15 11:16:50 Dardang readynasd[2539]: System volume root's usage is 83%. This condition should not occur under normal conditions. Contact technical support. Unfortunately there is no technical support for ReadyNAS anymore, so you cannot follow the advice in the error message. Although the OS partition needs attention at some point, the problem really seems to be the errors coming from two different disks. Unfortunately RAID can't deal with 2 failing drives. I think the next step is to power down the NAS and test these disks in a Windows PC (connecting with SATA or a USB adapter/dock). Normally I recommend vendor tools (WDC's dashboard or Seagate's Seatools). I don't use Toshiba drives myself, so I don't know the best tool to use. You could try this one: https://www.toshiba-storage.com/wp-content/uploads/2018/02/TOSHIBA_Storage_Diagnostic_Tool.zip

Royalblue wrote: Using a clean drive worked, I was able to create a new volume and it booted fine. I tried to access the boot menu with the reset button held in but again I only got the Normal option? So you have two sets of issues. One is the failure of the reset button, the other is that the volume won't mount. Earlier (post 16) I posted the ATA and disk spin-up issues that are in your logs. In post 17, you replied saying that when you tested the disks they passed. And the single disk appears to be working ok. That suggests that the disk issues might be due to inadequate power. That could be an issue in the chassis, or it could just be a failing power adapter. So that could be something to explore. However, I think the main issue now is to try to get the files off the existing disks. Since we can't get the NAS into tech support mode, your options are limited. Options include Purchase ReclaiMe and enough enclosure(s) to allow you to connect all the disks to a Windows PC Contract with a data recovery service, and have them offload the files for you. Try a USB recovery with the new disk in place, in hopes that it will fix the reset button problem. If that works, then try tech support mode. Purchase a replacement ReadyNAS (used), so you can boot up in tech support mode Options 3 and 4 can be risky, especially for folks with no experience with the linux command line interface.

There is another possible recovery method. I just posted this update: Mounting-ReadyNAS-drives-in-a-virtual-NAS-for-data-access-and=recovery Given the ATA errors, I recommend going the drive image route.

Can I read a readynas drive on my PC?

32 Replies

StephenB
Guru
Mar 14, 2024
Royalblue wrote:

I have been having problems with booting the readynas after getting a no ip address error which I couldn't resolve.

How did you try to resolve it? Was RAIDar able to find the NAS?

https://kb.netgear.com/20684/ReadyNAS-Downloads#raidar

What is happening when you try to boot the NAS?

Royalblue wrote:

Is there any way I can read the files on each of the drives

No, because the files are spread across all the drives (this is called striping).

You'd need to connect at least three of them to the PC, using either SATA or USB adapter/docks

Royalblue wrote:

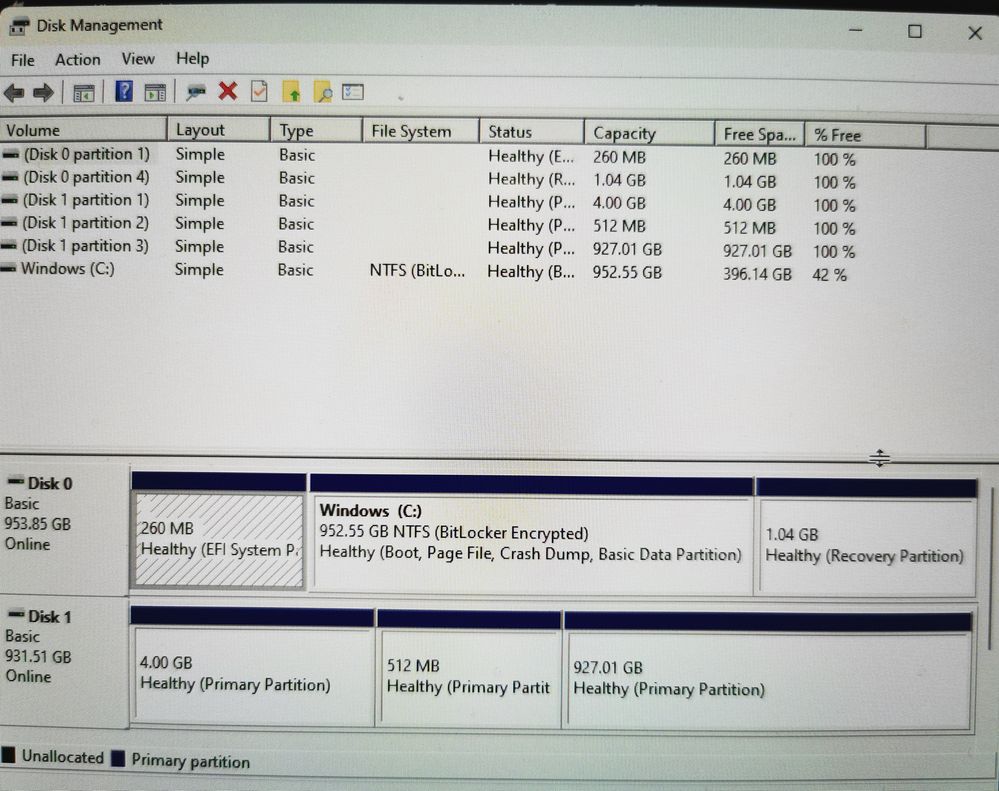

I have a sata to usb attachment which connects the drives and they show up in 'disk management' with 3 partitions but each one shows that it has 927gb of free space. (image below, disk 1 being the drive from the NAS)

No, that is not free space. Windows is showing all the partitions as "free space" because it does not recognize the file format.

Partition 1 is the OS partition (linux and the NAS application)

Partition 2 is for swap

Partition 3 is your data volume

Royalblue wrote:

Is there any way I can read the files on each of the drives and transfer them to a windows laptop?

If you know linux (I'm guessing not), then you can boot up the PC under linux and manually mount the volume.

Another option (which costs) is to purchase RAID recovery software that supports the BTRFS file system. ReclaiMe is an option that several folks here have used with success.

Either way you will need a way to connect all the disks.
- Royalblue
  Tutor
  Mar 14, 2024
  Hi Stephen,

  I wasn't able to resolve the IP address issue, I checked the Ethernet cables etc. I have RAIDar installed but it wasn't able to find the NAS.

  My router had the NAS showing as connected but unidentified.

  When I try to boot it gets stuck at 38% (Maybe I should try to reboot again?)

  I have the ReclaiMe installed as a demo, I only have one SATA dock at the moment though.

  One more question how do I now which RAID number I have set up?

  Many thanks,

  Andrew.
  - StephenB
    Guru
    Mar 14, 2024
    Royalblue wrote:

    My router had the NAS showing as connected but unidentified.

    Which means the ethernet is working.

    But it didn't give it an IP address? That would be odd, unless the router was set up to block connections by default.

    Did you set up the NAS to use a static address? And then get a new router?

    Did you try switching to the second NIC?

    FWIW, it sounds like your NAS is working, but something else is wrong with your network setup.

    Royalblue wrote:

    One more question how do I now which RAID number I have set up?

    Are you using four 1 TB drives? If so, default setup is RAID-5.

    As I said, files (and metadata) are spread over all the disks. That means that generally part of a file will be on one disk, the rest of it will be on other disks.
