Installation & Upgrade
5075 TopicsCan I shelf a JBOD volume for later?
I have it in my mind to use drive bay #4 as a JBOD brtfs backup drive. Primary RAID1 will be in drive bays 1,2. I may have also an additional JBOD drive3 with intentionally non-raided data. The desire is to backup both the RAID1 volume and JBOD volume to drive#4 JBOD btrfs. I have thought about getting an external USB drive as a backup drive, however my understanding is that external drives can't be formatted as btrfs, they would need to be EXT4 most likely...and one thing I am hoping to do is to do timemachine style snapshots on the backup data. So first question, I'm I crazy with this notion or fine so far? But the quesetion comes up, what happens if the first two volumes die or need to be rebuilt and let's say its the first /data volume on RAID1 that has to be rebuilt (or maybe I just want to expand it), so I guess I would have to at that point pull all the drives out (including the backup drive) and do a factory reset with two drives in RAID1 and setup readynasOS to my satisfaction, then introduce the backup JBOD Volume back in, but can I do that? Is there a way to insert that shelved JBOD backup drive, while I do a factory reset and then insert it and have the readynas see it, is flex raid smart enough to do that? Or would have to have the backup on some totally external media in order to avoid flexraid requiring that JBOD volume to be wiped? Is there a way to use brtfs on external USB drives? Not for purposes of raid. but for snapshotting?SolvedReadyNAS snapshots
Can anyone please clarify how the snapshots are structured in ReadyNas OS? I see that when I create a snapshot is there in front view. If I have checked the box to "access the snapshot" (for a share), then two new folders show up at the root level of the share. "snapshot" and ".snapshots". .snapshots is totally hidden from ls listing even in ssh, but if I cd to it anyway knowing is there, I can cd into it. It appears to me that .snapshots is meant to be the internal location of hard links to underlying snapshot references, they are numbered 0-9 so far. Then the other snapshot folder that is not hidden is also referencing the same things...but labeled as dates rather then sequential numbers. First I want to understand if I'm understanding that correctly so far? I am trying to setup my idrive backup to ignore those because to idrive, due to hard links, they just look like lots and lots of duplicated data...twice...once for snapshot and once for .snapshots. Still trying to figure out out how to exclude them in Idrive, idrive has an exclusion list, but somehow so far its not excluding them..and it takes a really long time to prep its backup task...I guess scanning through many many more data then necessary. I will probably figure that out eventually, but for now just wanting to understand how the snapshots in Readynas work...in terms of those folders when I have enabled "access" to the snapshots. I wish Readynas had located these access at a different path inside of at the root level of the share, because while readynas is presumably smart enough to ignore that when creating each new snapshot, avoiding recursion.. other tools such as idrive and others, simply see it as a lot of duplicated data. well anyway it is whatever it is, but any clarity on this point would be helpful. thanks.ReadyNAS 626X (RN626X00) S/N 4MD46CEL000F1
Dear Team, yesterday unexpectedly my NAS server stopped working so i rebooted the NAS after it was stuck on booting at 46% and then after long time its booted. but i was not able to access it through admin page. it has 4TB of 4 HDD on RAID5 ,DISK 3 LED is BLINKING. on front display showing resyncing of data 10.95% , 0MB available out off 10.91 TB. in Admin login page following error are showing. VolumeSS.png , AdminPage.png , Volumeerror.png https://autocalsolutionspvt-my.sharepoint.com/:i:/g/personal/itsupport_autocal_in/ETZ29B5ziRpEjtMymRRTSqgBmuUK_BlopAFlplFza2EP8A?e=JmIOoP https://autocalsolutionspvt-my.sharepoint.com/:i:/g/personal/itsupport_autocal_in/EXmuAj7Mv6ZDg7C9lNCCzEMBLWSZSEPUM8PqEV-HP8fHXg?e=nirsYE9Views0likes1CommentReadyNAS RN1020-100EUS – Cannot detect via RAIDar or default IP after reset/recovery
What I’ve done so far: Tried multiple Ethernet cables. One bad cable was found and replaced. Now connected via the same network (router/switch) as my PC. I have also tried a direct cable from NAS to PC with a static IP, but no change. RAIDar 6.5.0 cannot detect the NAS in any state. Performed a factory default reset using boot menu: Powered off NAS Held SYS/Reset while powering on → LED blinked then went solid Pressed Backup until only Disk 1 LED was lit Pressed Reset again → NAS LEDs alternated between Power, Disks 1 & 2, and Backup for about 20 minutes Eventually LEDs stopped alternating — now Power + ACT + Disk 1 + Disk 2 are all solid With all 4 LEDs solid, the NAS appears “ready,” but I cannot access it and RAIDar still does not see it. Also attempted: USB Recovery with rear port: Built USB manually from a YouTube tutorial (may not have been official RN1020 package) Booted doing same procedure as default reset but selected disk led 2 instead. RAIDar still did not detect Tried boot menu without USB: Fast blink → Solid blue → no detection. Drives installed: Two Toshiba N300 NAS 4TB (both inserted during factory reset). Current state: Power + ACT + Disk 1 + Disk 2 solid blue No web UI on default IP 192.168.168.168 whether direct-connected or via network RAIDar cannot find NAS Any ideas on this would be greatly appriciated Thanks in advance.ReadyNAS RN214 not showing correct disc size
I have a RN214 and had 4x6TB drives and have updated 2 of those to 12TB as was running out of space. However it now only shows 21.81TB size with 5.64TB free space and was expecting more Looks like the correct size of the drives is not showing. It is set on X-RAID - Raid 5. Any suggestion would be great. ThankyouReadyNAS 626X ... replacement Linux
As there has been no news for ReadyOS updates in the last... 5? year... It might be time to actually replace the operating system with another Linux. I remember seeing some discussions here about doing exactly that. But with the forum re-organization I could not find that. Specifically: Is there an easy way to just go into BIOS and boot from a USB? Is it better to "permanently" install a custom OS, or just keep using the USB to boot? Is there a Serial or VGA output? Or shall I try to add a VGA card to the internal PCI slot (which means "open" operation)? Thanks in advance!Solved97Views0likes3CommentsRN 212 unable to update firmware to 6.9.2 and antivirus failure

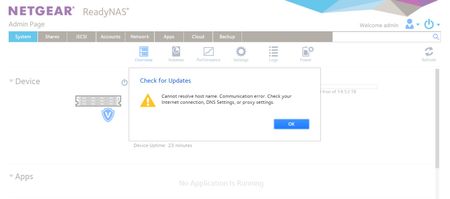

I am on firmware v 6.9.1 and attempting to update to 6.9.2. When attempting to download and update through the admin page, the error 6001010023 is displayed. When attempting a manual firmware update from a downloaded image, I get "unrecognised server error" Also, from the 1st Feb18 the antivirus has failed each time with the following log error: "System: Antivirus scanner definition file update failed due to download failure. Check your Internet connection." Has anyone experienced similar problems? Thanks1.3KViews0likes6Comments
