Forum Discussion
S350 Smart Switches (GS348T) - Get fiber-ports optics-info via SNMP
Hi Community,
is it possible to get the fiber-ports optics-infos via SNMP OID readout from a S350 Smart Switches (GS348T)?
If yes which OIDs / MIB they are?
For example I want to monitore this values in LibreNMS
*************** show fiber-ports optics-info all ***************
Link Link Nominal
Length Length Bit Possible
50um 62.5um Rate Speed
Port Vendor Name [m] [m] Serial Number Part Number [Mbps] Rev Compliance Supported Detected
-------- ---------------- ------ ------ ---------------- ---------------- ------- ---- ---------------- ------------ ---------
g49 FS 0 0 S2001345774 SFP-GE-BX 1300 1000BX10 Yes 1G
*************** show fiber-ports optics all ***************
Output Input
Port Physical Port/ Temp Voltage Current Power Power TX LOS Fault
Lane Number [C] [Volt] [mA] [dBm] [dBm] Fault Status
------ -------------- ---- ------- ------- ------- ------- ----- --- -------------
g49 g49-Lane1 47.4 3.270 17.7 -5.314 -40.000 No Yes Local Fault
Thanks in advance!
13 Replies
All MIB are available along with the currenct firmware, e.g. for the GS348T here
- Hi schumaku,
Thanks I know. But which one is for the SFP transceiver statistics?
I already check some but did not find it.
May I need to spend more time into it...Challenge support please, e.g. via https://my.netgear.com/ https://my.netgear.com/support/contact.aspx
No idea JohnC_V or ChristineT are still around and active here. IphieChen Iphie_C please.
Hallo koeber,
willkommen in der NETGEAR-Community.1.1. Welche Firmware-Version ist auf dem GS348T installiert?
1.2. Hast du die MIB «mib-2.my» angeschaut? Dort ist das Objekt «ifType» enthalten.
Mit freundlichen Grüßen
WojciechKrz
NETGEAR TeamThe convenient SNMP Private MIBS - boxServicesFiberPortsOpticsTable .1.3.6.1.4.1.4526.10.43.1.16 table isn't implemented on the less expensive Smart Switch models.
This should be in fastpath_boxservices.my 8-)
Regards,
-Kurt
schumaku

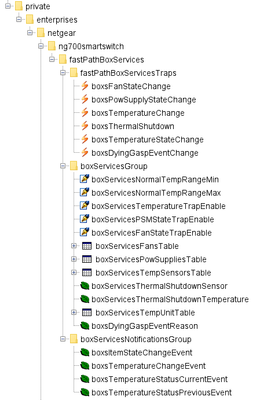

In fastpath_boxservices.my I cant find any FiberPortsOpticsTable
Switch itself told me that they will support the following MIBs:DIFFSERV-DSCP-TC The Textual Conventions defined in this module should be used whenever a Differentiated Services Code Point is used in a MIB. DNS-SERVER-MIB The MIB module for entities implementing the server side of the Domain Name System (DNS) protocol. HC-RMON-MIB The original version of this MIB, published as RFC3273. IANA-ADDRESS-FAMILY-NUMBERS-MIB The MIB module defines the AddressFamilyNumbers textual convention. IANAifType-MIB This MIB module defines the IANAifType Textual Convention LAG-MIB The Link Aggregation module for managing IEEE 802.3ad LLDP-EXT-MED-MIB The LLDP Management Information Base extension module for TIA-TR41.4 Media Endpoint Discovery information. MAU-MIB Management information for 802.3 MAUs. NETGEAR-BOXSERVICES-PRIVATE-MIB The NETGEAR Private MIB for NETGEAR Box Services Feature. NETGEAR-DHCPCLIENT-PRIVATE-MIB The NETGEAR Private MIB for NETGEAR DHCP Client NETGEAR-G8032-MIB The NETGEAR Private MIB for NETGEAR G8032 NETGEAR-INVENTORY-MIB Unit and Slot configuration. NETGEAR-LOGGING-MIB This MIB provides objects to configure and display events logged on this system. NETGEAR-MGMT-SECURITY-MIB The NETGEAR Private MIB for NETGEAR Mgmt Security NETGEAR-QOS-ACL-MIB NETGEAR Flex QOS ACL NETGEAR-QOS-COS-MIB NETGEAR Flex QOS COS NETGEAR-QOS-MIB NETGEAR Flex QOS Support NETGEAR-REF-MIB NETGEAR Reference NETGEAR-SWITCHING-MIB NETGEAR Switching - Layer 2 NETGEAR-TIMEZONE-PRIVATE-MIB The NETGEAR Private MIB for NETGEAR for system time, timezone and summer-time settings RADIUS-AUTH-CLIENT-MIB RADIUS Authentication Client MIB RFC 1493 - BRIDGE-MIB Definitions of Managed Objects for Bridges (dot1d) RFC 2674 - P-BRIDGE-MIB The Bridge MIB Extension module for managing Priority and Multicast Filtering, defined by IEEE 802.1D-1998. RFC 2737 - ENTITY-MIB Entity MIB (Version 2) RFC 2863 - IF-MIB The Interfaces Group MIB using SMIv2 SMON-MIB The MIB module for managing remote monitoring device implementations for Switched Networks SNMP-FRAMEWORK-MIB The SNMP Management Architecture MIB SNMP-NOTIFICATION-MIB The Notification MIB Module SNMP-USER-BASED-SM-MIB The management information definitions for the SNMP User-based Security Model. SR-AGENT-INFO-MIB SNMP Research, Inc.
Looking futher through MIBs until I found it and will report here 😉
Wojciech_K
vielen Dank für deine Nachricht. ifType bringt aber nurName/OID: ifType.1; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.2; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.3; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.4; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.5; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.6; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.7; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.8; Value (Integer): ethernetCsmacd (6) Name/OID: ifType.1000; Value (Integer): ieee8023adLag (161) Name/OID: ifType.1001; Value (Integer): ieee8023adLag (161) Name/OID: ifType.1002; Value (Integer): ieee8023adLag (161) Name/OID: ifType.1003; Value (Integer): ieee8023adLag (161) Name/OID: ifType.1004; Value (Integer): ieee8023adLag (161) Name/OID: ifType.1005; Value (Integer): ieee8023adLag (161) Name/OID: ifType.1006; Value (Integer): ieee8023adLag (161) Name/OID: ifType.1007; Value (Integer): ieee8023adLag (161) Name/OID: ifType.10000; Value (Integer): other (1)
Firmware ist GS348Tv1_V1.0.0.43.Viele Grüße
