Forum Discussion

oki's avatar
oki
Aspirant
Dec 08, 2017
Solved

XS708Ev2: unable to remove LAG ID 1 through Web interface

I configured LAG 1 for Port 1-2. LAG 2 for Port 3-4 and LAG 3 for Port 5-6.



After restructuring the entire network, the LAGs are not needed anymore. I can delete LAG ID 2 and LAG ID 3 port memberships.



LAG1 cannot be deleted and shows error "A LAG must have at least 2 port members!".



I'm using firmware V1.0.0.15.

please advice, how to proceed.



  • Ahhhrg, got it: "admin mode" must be deactivated first.

3 Replies

  • BrendanM's avatar
    BrendanM
    NETGEAR Expert

    On the admin page, go to System - LAG - LAG Configuration. Disable LAG 1. Then can remove the ports from the LAG.

    • oki's avatar
      oki
      Aspirant

      Thank you for your reply.

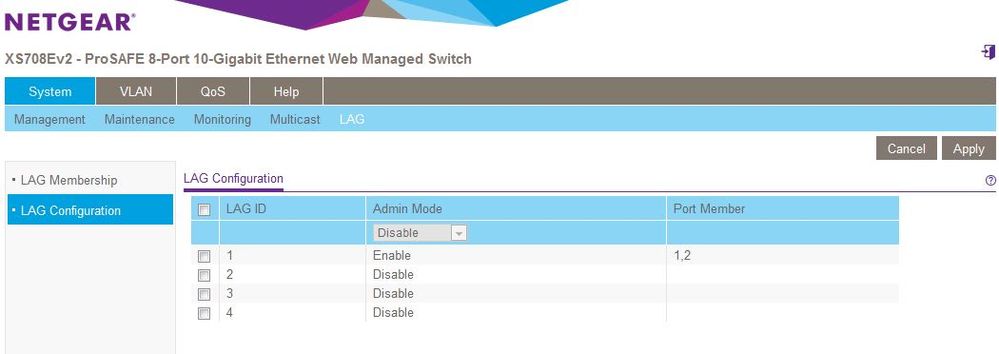

      please direct me to this button. My view to LAG Configuration:



      • oki's avatar
        oki
        Aspirant

        Ahhhrg, got it: "admin mode" must be deactivated first.
