Forum Discussion
"Up to 5.8 Gbps" it only uses 20 Mhz
I am having the same issue, it keeps going to 20 MHz even though I'm trying to use this for a Quest 3 wireless access point. 20 MHz is not cutting it either for steamVR. I bought this router exclusively for this and it is performing worse than congested 5 GHz channels.
7 Replies
If I set the mode to "Up to 2.9 Gbps" it uses 160 MHz, but "Up to 5.8 Gbps" it only uses 20 Mhz
How are you checking this? What scanner/device are you using?
Screensnips?
Yeah, we need to know
- what the router model it is (RS700, RS600, or RS500)?
- which channel is set to/operating on?
- and how did you check the bandwidth?
For the 5GHz band on RS700, RS600, RS500, RS200: "Up to 5.8Gbps" can operate in the 160MHz, and "Up to 2.9Gbps" can operate only up to 80MHz (is not supposed to oeprate in the 160MHz).
For the RS300 and RS100, "Up to 2.9Gbps" can operate in the 160MHz.
==> This is due to they have different number of streams for the 5GHz band.
From the router's management Web GUI,

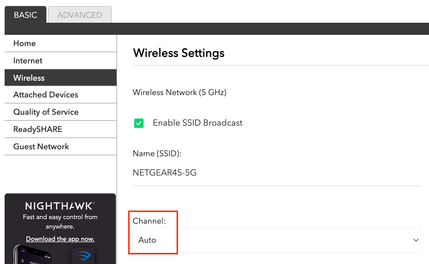

- BASIC tab / Wireless menu: Wireless Settings | Channel under the 5GHz --> it shows the operation channel set for the 5GHz band.

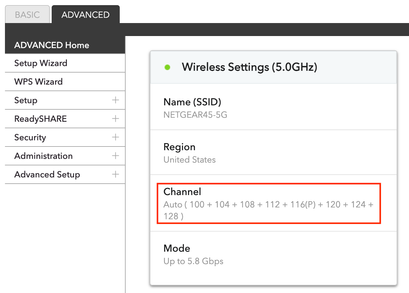

- ADVANCED dashboard / Wireless Settings (5.0GHz) tile --> the Channel there shows the actual channel currently the 5Ghz is operating on.
Router is a RS300. The only band enabled with the 6 GHz band, smart connect is off.
Channel 181 (Freq 6855 MHZ @ 160 MHZ bandwidth)
Using multiple wifi analyzer applications
Selecting Up to 2.9 Gbps enables 160 MHZ on the 6 GHz band, but enabling the 5.8 Gbps goes straight to 20 MHz when it should be doing 320 MHz. I have another 6 GHz router that uses channel 5 and it can get access to the full 320 MHz, but this one won't even though the box says it can do 320 MHz in 6 GHz band.May we know the which WiFi analyzer application was used? windows or MacOS? And type of Wi-Fi adapter used for scanning?
