Restore RAID to ReadyNAS System

Question

How do I restore my ReadyNAS 316 to full RAID? Before this all started I had 5 disk drives, and my recollection that everything was happily RAIDed.

I got an error message that Drive 3 was failing, so I plugged in a new 16TB drive into slot 6. Then all went haywire.

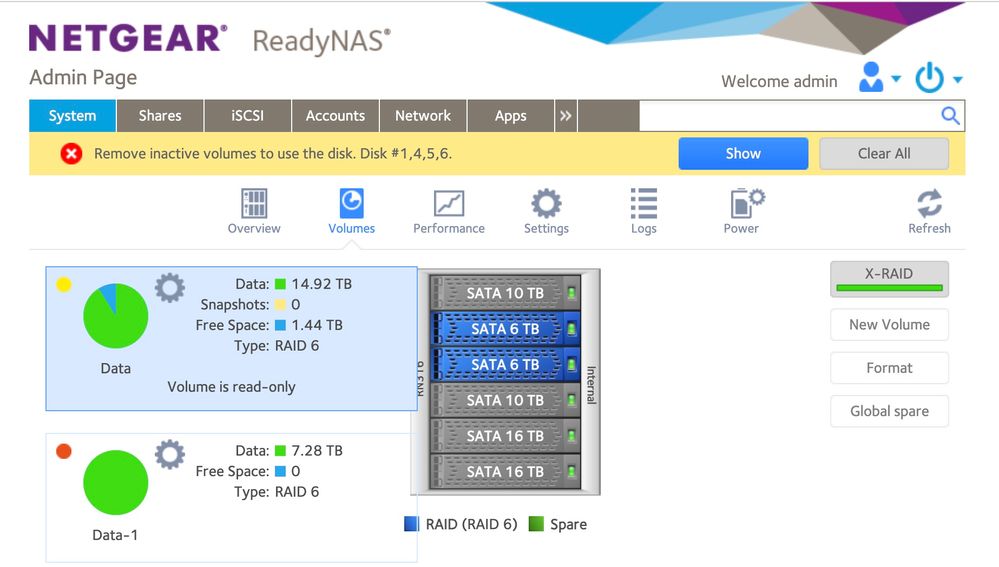

The attached picture shows how my system looks now. Only 2 drives (both 6TB) are listed as RAID, while the other four drives, including the new one, are gray. Yet the I have two volumes with 15TB on one and 7TB on the other.

Does this mean that some of my data is not fully duplicated?

And given that four of my drives are listed as not RAID, does this mean that I can't remove them?

And what does it mean that I have four inactive volumes? If these four disks are inactive, how do I store 22TB of data on two 6TB drives?

I'm really confused. I don't have another system to copy all the data onto. What can I do to get the ReadyNAS to recover?

How can I find out what data is on the "inactive" volumes? If I remove them, do I lose data?

Thanks.

- Malcolm

StephenB · Answer

MalcolmSlaney&nbsp;wrote:
&nbsp;
I got an error message that Drive 3 was failing, so I plugged in a new 16TB drive into slot 6.&nbsp; Then all went haywire.

Why?&nbsp; The proper response was to pull Drive 3 and insert the new drive in slot 3.
&nbsp;
MalcolmSlaney&nbsp;wrote:
&nbsp;
The attached picture shows how my system looks now.&nbsp; Only 2 drives (both 6TB) are listed as RAID, while the other four drives, including the new one, are gray.&nbsp; Yet the I have two volumes with 15TB on one and 7TB on the other.&nbsp;&nbsp;
&nbsp;
Does this mean that some of my data is not fully duplicated?
&nbsp;
And given that four of my drives are listed as not RAID, does this mean that I can't remove them?
&nbsp;
&nbsp;

The RAID array has failed in some way.&nbsp; DON'T remove any drives or delete any volumes right now - this will likely result in data loss.
&nbsp;
Download the full log zip file from the logs page in the web ui.&nbsp; There are clues in there.&nbsp; If you need help analyzing it, you can upload the full zip file into cloud storage (dropbox, google drive, etc) and send me a private message (PM) with a download link.&nbsp; Make sure the link permissions are set so anyone with the link can download.&nbsp; You send a PM using the envelope icon in the upper right of the forum page.
&nbsp;
MalcolmSlaney&nbsp;wrote:
I don't have another system to copy all the data onto.&nbsp; What can I do to get the ReadyNAS to recover?
&nbsp;
&nbsp;

Unfortunately, RAID is not enough to keep your data safe.&nbsp; If you don't have a backup plan, then at some point you will lose the data.&nbsp; It is just a matter of when.&nbsp; So after you get through this, you should look into setting up a backup plan for your data.&nbsp;

Sandshark · Answer

You don't actually have two volumes.&nbsp; You have two sections of one volume that the OS cannot reconcile as one.&nbsp; So, it labels the second section&nbsp;data-0 since there can't be two with the same name.&nbsp; The blue normally indicates which drives are a part of which volume.&nbsp; data is currently selected, and this shows the NAS sees those two drives as one volume.&nbsp; If you select the data-0 "volume", it will turn others blue.&nbsp; What I find as odd is that is says the size of the two 6TB is over 14TB, which cannot be.&nbsp; But I guess that's just more of the confusion the OS has in assembling the volume.&nbsp;The end result is that none of your data is accessible and you are going to have to manually re-assemble it into one volume to be able to access it.&nbsp; Some data loss is probable.&nbsp;The likely cause is that the failing drive did completely fail during the RAID re-sync of the added drive.&nbsp; During re-sync, a RAID is not fully redundant.&nbsp; Whether your data is recoverable, and to what extent, may depend on just how badly failed drive 3 is.&nbsp;&nbsp;StephenB&nbsp;is quite good at helping others recover as much data as they can, so let him help you.&nbsp; But even if you succeed, you most likely are going to need to back up your data to another device so you can ultimately rebuild the volume from scratch.&nbsp; But you will then have a device you can use for continued backups.&nbsp; If the other 6TB drive is as old as the one that failed, you may want to consider leaving that one out in the rebuild.

MalcolmSlaney · Answer

Thank you Stephen for your response.&nbsp;I had an empty slot in my NAS, so I thought it was better to add a new good drive than to remove one that was failing (but still usable).&nbsp;I should have included the logs.&nbsp; I read through them and nothing popped out at me, but I certainly don't understand all the messages I am seeing.&nbsp; Here is the status.log and the volumes.log.&nbsp; I should have included them in the original note. I'll share the entire log zip separately.&nbsp;I do have a new 16TB disk on order, and worst case I can do a backup and restore.&nbsp; But it seems like ReadyNAS should have enough space and knowledge to restore its current version.&nbsp;&nbsp;&nbsp;Is there a way to mark a disk as about to be removed so it can move all data off of it?&nbsp;Thanks.&nbsp;- Malcolm

MalcolmSlaney · Answer

Thank you Sandshark.&nbsp; When I do select the disk it does show the other four disks, and suggests they are all RAID'ed.&nbsp;I haven't probed everything, but it the data I have looked for is there....... but I don't have a lot of confidence in the system!&nbsp;But it does seem like I have 23T of data, across two volumes... so my soon-to-arrive 16T disk is not enough.&nbsp; Can I back up these two volumes to two different disks?&nbsp;&nbsp;And what does it mean when it says that disk 1, 4, 5, 6 are inactive?&nbsp; They look active in Data-1 to me... it seems.&nbsp; I'm confused.&nbsp;-- MalcolmP.S. I saw advice elsewhere that Raid 6 is not a good solution for consumer disks this big.&nbsp; What should I use?

StephenB · Answer

MalcolmSlaney&nbsp;wrote:
&nbsp;
P.S. I saw advice elsewhere that Raid 6 is not a good solution for consumer disks this big.&nbsp; What should I use?

There's a lot advice out there, some of which I personally disagree with.
&nbsp;
First you need to try to get the volume mounted, so you can back it up.&nbsp; The data is at risk.
&nbsp;
&nbsp;
Personally I use RAID-5.&nbsp; Though I also have a solid backup plan in place, so I won't lose any data if my main NAS fails.
&nbsp;
You are using RAID-6 now.&nbsp; If you want to switch to RAID-5 then you'd either need to use some rather tricky linux commands with ssh, or you'd need to start over and restore your data from backup.
&nbsp;
One problem with your setup - to get maximum storage, you need the biggest 4 disks in the array to be the same size.
&nbsp;
Before you added the 16 TB disk the other day, you had 2x6TB+2x10TB+1x16TB.&nbsp; This was wasting 18 TB of space.&nbsp; 5x6TB would have given you the same volume size.&nbsp; You really should have four 16 TB in this system if you want to run RAID-6. You'd replace the two smallest with 16 TB (including the failed one in bay 3).
&nbsp;
RAID-5 is more flexible in that regard.&nbsp; It just needs the largest two disks to be the same size.&nbsp;&nbsp;
&nbsp;
&nbsp;
MalcolmSlaney&nbsp;wrote:
&nbsp;
When I do select the disk it does show the other four disks, and suggests they are all RAID'ed.
&nbsp;
But it does seem like I have 23T of data, across two volumes... so my soon-to-arrive 16T disk is not enough.&nbsp; Can I back up these two volumes to two different disks?
&nbsp;

The short answer is that the volume page is confusing because of the errors.&nbsp; As&nbsp;Sandshark&nbsp;says, you only have one data volume.
&nbsp;
Removing inactive volumes (following the advice in the screenshot) will destroy any chance of getting your data back, so do not follow that advice.
&nbsp;
What you should have now is two RAID groups.&nbsp;

One is 6x6TB RAID-6. This is assembled into md127 (which you will see in your logs)
The second is 4x4TB RAID-6 (using the extra space on the two 10 TB disks, plus 4 TBs of space on the two 16 TB drives.&nbsp; &nbsp;This is assembled in md126.
The remaining space on the 16 TB disks can't be used in RAID-6.&nbsp;

md126 and md127 are virtual disks. The BTRFS file system concatenates them together into your data volume.
&nbsp;
The log zip shows that the two virtual disks are being assembled, but some corruption is causing BTRFS errors.&nbsp; &nbsp;The inactive volume status isn't showing up in the logs - instead they show the volume as mounted Read-only.&nbsp; So that is inconsistent with the screenshot.&nbsp; It is possible that the volume failed after the log was taken.&nbsp;
&nbsp;
The steps I sent in the PM message should give us some more information on that.
&nbsp;
&nbsp;
&nbsp;
