2016 Teaming doesn't work with M4300-52 G
Hello, I try to replace a old Netgear Switch (GS748Tv5) by a M4300-52 G. 2 switches are stacked. I have a Windows 2016 server (vlan 35).
The server is connected to the old switch through a teaming (see below the configuration - port 45 & 46)

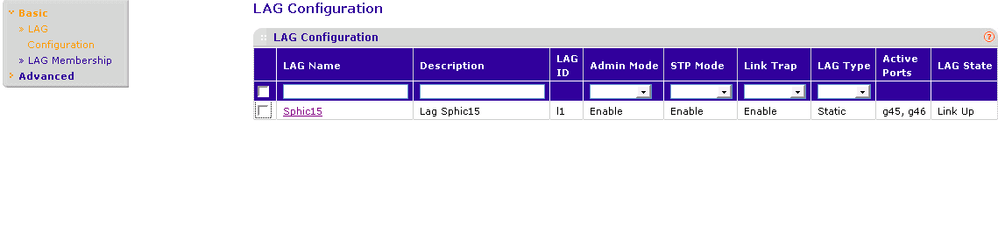

LAG:

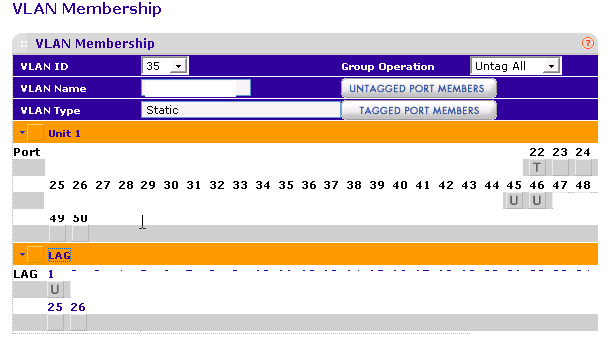

VLAN :

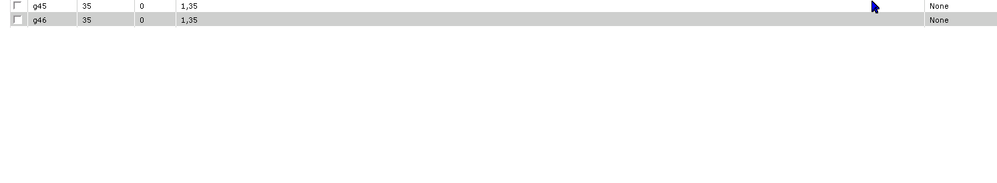

PVID:

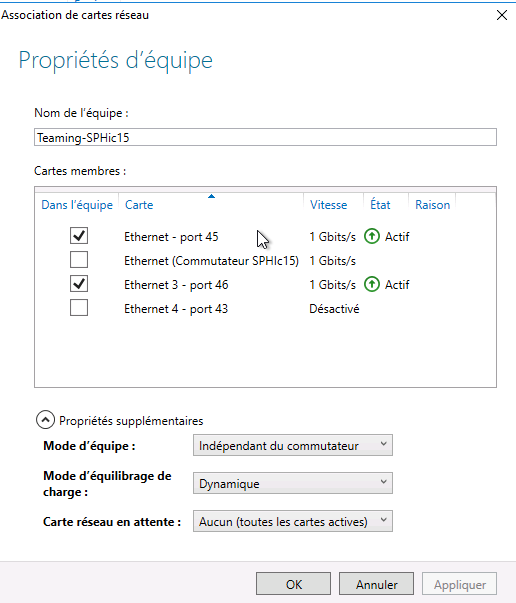

Teaming conf on 2016

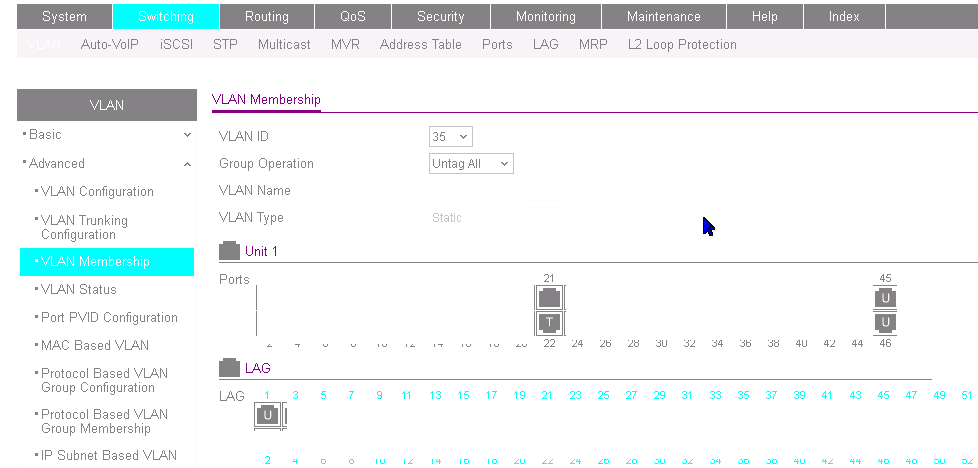

I try to connect the teaming to new server with the same configuration (see below the configuration - always port 45 & 46). The server seems to connect but i can't remote desktop on it (ping N_Ok). I try a reboot but same result.

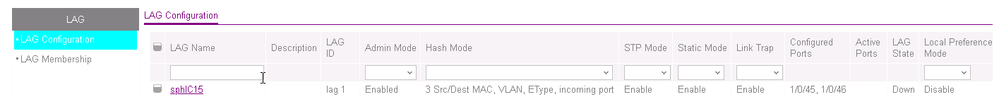

LAG
PVID:
Any help will be appreciate. Thanks. Benoît
Hello,
It's Ok now. I forgot the PVID on LAG1 on new switch. I found the solution on this community.
Thanks.
Benoît
2 Replies
Hi Benoit72
Welcome to the community!
Could you please run below CLI command? We want to get more detailed info for analysis this problem.
show port-channel 1
show running-config interface lag 1
Beside, I notice the LAG type is static on old switch(GS748Tv5), so please make sure it's same config on new switch(M4300-52G).
Hope it helps!
Regards,
EricZ
NETGEAR employeeHello,
It's Ok now. I forgot the PVID on LAG1 on new switch. I found the solution on this community.
Thanks.
Benoît
