Forum Discussion
dbrb2
Jul 19, 2025Apprentice
RBR750 Internal server error
Damn.
2 nights ago my RBR750 started showing an error 500 interal server error
It still works as an AP, but the satellite will not connect - so half the wifi is down
A power cycle had no effect....any ideas? Was there some new f/w pushed out by any chance?
16 Replies
- FURRYe38Guru - Experienced User
What is the brand and model# of the host router?
How is the RBR connected to the host router? Yellow WAN port on the RBR is required for AP Mode.
RBS is wireless or ethernet connected to the RBR?
How is the RBR configured for AP mode? Dynamic or Static configuration?
Did the front LED on the RBR turn on PINK or blink WHITE?
Power cycle the host router as well?
What FW version was last seen on the RBR and RBS?
- dbrb2Apprentice
What is the brand and model# of the host router?
The RBR750 is in AP mode - so not acting as a router. The router itself is a pi5 running openWRT - but that setup hasn't changed for years
How is the RBR connected to the host router? Yellow WAN port on the RBR is required for AP Mode.
Yep, think that is the case (hasn't changed for ages)
RBS is wireless or ethernet connected to the RBR?
Wireless - from trial and error, when the RBS is on a wired connection, everything stopped working
How is the RBR configured for AP mode? Dynamic or Static configuration?
I can't recall - but neither can I get to it as the page returns an error code 500. Some functionality still works - devices can still connect to it, but not the satellite device
Did the front LED on the RBR turn on PINK or blink WHITE?
Can't tell - it failed whilst I was (am) away.
A power cycle hasn't helped (I tried that remotely)
I may replace them with 2 "dumb" openWRT wired access points. Less fancy to be sure, but also less to go wrong!
- FURRYe38Guru - Experienced User
So you can't access the RBR from a remote location or local fails as well?
Sounds like the system may need a full on factory reset and setup from scratch. Press the reset button on the RBS first for 15 seconds then release, then do same thing on RBR. Have the RBR disconnected from the host router for this. Give about 5 minutes for the RBS to connect to the RBR by default, then walk thru the setup routine with out the RBR connected to the host router and complete it:
https://kb.netgear.com/22697/How-do-I-install-my-NETGEAR-router-using-the-router-web-interface
Then setting up AP mode, I recommend using this to set up the Orbi system again in AP mode using static configuration so that the IP address you set doesn't change:
Static IP Address Configuration for AP Mode | NETGEAR Communities
- dbrb2Apprentice
Ah I should clarify - when I say remote - I am actually technically local - I am port forwarding in over SSH
Both the RBS and the RBR get IPs over DHCP
But the RBR gives a 500 if I try to load the main web page
The RBS asks for a login, but then loads an empty page when the correct credentials are entered
I guess one take-away from this is to turn off auto firmware updates (I don't know that was the problem, but seems likely as nothing else has changed recently....)
- dbrb2Apprentice
Actually the RBS is up
But not functional and can't, apparently, see the RBR
- CrimpOnGuru - Experienced User
dbrb2 wrote:
Actually the RBS is up

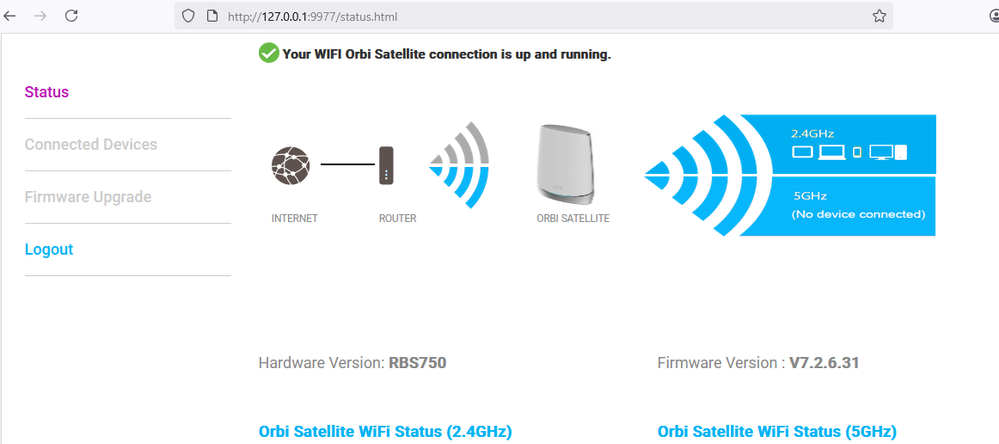

But not functional and can't, apparently, see the RBRHow strange. The diagram appears to show that the 5G link between router and satellite is "up" and that devices are connected to the satellite at 2.4G.
- CrimpOnGuru - Experienced User
Could you try the debug page, i.e. <IP of the router> slash debug.htm
Is there another web browser on the Pi?
Can you "clear cache" on the browser?
How do you do a power cycle remotely?
- dbrb2Apprentice
No luck with debug mode. Some pages though do still respond:
ben@pi5:~ $ curl -s http://192.168.1.15/ajax/qos_link_check.php --data-raw check_bw=check
speedtest stcurl -s http://192.168.1.15/ajax/qos_result_check.cgi --data-raw check_bw=check -X POST -H 'Content-Length: 0'tent-Length: 0'
speedtest is runningSome time later....
ben@pi5:~ $ curl -s http://192.168.1.15/ajax/qos_result_check.cgi --data-raw check_bw=check -X POST -H 'Content-Length: 0'
99.99 Mbps;964.73 Mbps;2025-07-19 22:33:49ben@pi5:~ $
So the unit is there and functional - to some extent.I power cycle remotely using a PoE managed switch - since both the RBS and RBR run from 12v PoE splitters (and have done for years)
I've tried various browsers, incognito modes, and chache clearances unfortunately
- dbrb2Apprentice
As a last ditch attempt (turns out to be a bad idea) I updated the RBS firmware to the latest using the file from netgear support pages.
Now the RBS gives me a 404
Feels like this is a problem that may be best solved by using different hardware :-)
- CrimpOnGuru - Experienced User
dbrb2 wrote:
Was there some new f/w pushed out by any chance?
The current firmware is v7.2.7.15 It was created Feb 28, 2025. The satellite clearly has v7.2.6.31.
p.s. (totally off subject....) Do you have a link to those ajax examples (and perhaps 'more') ?
- dbrb2Apprentice
Yep - you're right about the firmware. So the RBS problem was not caused by an auto firmware update. RBR maybe was - but I can't check that :-)
However, in my attempts to fix this evening I downloaded RBS 7.2.7.15 and uploaded that to the RBS - and that made things worse (404 error on the RBS now)
Those are the only ajax examples / URLs I have I'm afraid - though I have used them for ages to periodically check my speeds
- dbrb2Apprentice
RBS came up on its own overnight.
RBR seems now to be working - albeit without a web interface
Seems like maybe the Orbi firmware is just a bit fragile! For now it is working though (I realise this same thing happened last December, then....became OK again for unknown reasons!)
- FURRYe38Guru - Experienced User
I'd follow this and factory reset the system and setup from scratch using a wired PC and web browser:
Orbi Systems Manual Factory Reset Process | NETGEAR Communities
I had my 850 series online for over 30 days with this version of FW and saw no web UI access issues:
Share your Orbi 350, 750, 850 or 960 series system UpTime | NETGEAR Communities
- dbrb2Apprentice
Because this has happened a few times, I decided to bite the bullet and go for a pair of Cudy WR3000S configured as "dumb" wired AP with openWRT
Maybe not as fancy, but for now doing the job. Fingers crossed!
