readynas102 it was raided, one drive failed. A new drive was inserted but nothing was recovered and the working drive was not accessible, I made the recovery USB (many times) eventually it turned off. On reboot I can see both drives, the new drive is accessible, the second with the date on is seen but not accessible, i can see the volume of data but cannot open the drive. I removed the drive, docked it but the PC is not seeing the drive. How do i "un-lock" the drive or re-raid it in the readynas 102? I cannot afford to format and loose this data. I have reclaime installed but as the dock is not recognising the drive it cannot be used ..any help?

birty1 wrote: I have reclaime installed but as the dock is not recognising the drive it cannot be used ..any help? While windows won't mount the drive, reclaime should be able to see it. You should also be able to see it in the Windows disk manager. If that isn't working, then you either have a failed dock or a second failed drive. birty1 wrote: readynas102 it was raided, one drive failed. A new drive was inserted but nothing was recovered You should have had access to the files even when the drive that failed was pulled out. Are you saying that was not the case? Also, were you running X-RAID or RAID-1? Or were you running RAID-0 with FlexRAID??? birty1 wrote: On reboot I can see both drives, the new drive is accessible, the second with the date on is seen but not accessible, i can see the volume of data but cannot open the drive. Can you download the log file zip from the logs page? Also post a screenshot of what you are seeing on the volume page.

reclame sees it but no actions available, not available in windows

for some reason it wont let me upload the zip files Mike

the original set-up was x-raid, i did attempt to change it to flex, the damaged drive has limited options when highlighted

readynas 102 raid crash | NETGEAR Communities

13 Replies

Replies have been turned off for this discussion

StephenB
Guru - Experienced User
Jun 24, 2024
birty1 wrote:

I have reclaime installed but as the dock is not recognising the drive it cannot be used ..any help?

While windows won't mount the drive, reclaime should be able to see it. You should also be able to see it in the Windows disk manager.

If that isn't working, then you either have a failed dock or a second failed drive.

birty1 wrote:

readynas102 it was raided, one drive failed. A new drive was inserted but nothing was recovered

You should have had access to the files even when the drive that failed was pulled out. Are you saying that was not the case?

Also, were you running X-RAID or RAID-1? Or were you running RAID-0 with FlexRAID???

birty1 wrote:

On reboot I can see both drives, the new drive is accessible, the second with the date on is seen but not accessible, i can see the volume of data but cannot open the drive.

Can you download the log file zip from the logs page?

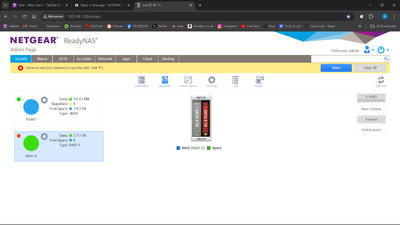

Also post a screenshot of what you are seeing on the volume page.
- birty1
  Aspirant
  Jun 25, 2024
  reclame sees it but no actions available, not available in windows
- birty1
  Aspirant
  Jun 25, 2024
  for some reason it wont let me upload the zip files

  Mike
  - StephenB
    Guru - Experienced User
    Jun 25, 2024
    birty1 wrote:

    for some reason it wont let me upload the zip files

    Don't post them publicly.

    If you like, you can put the entire zip into cloud storage (Dropbox, Google Drive, etc). Then send me a private message (PM) using the envelope icon in the upper right of the forum page. Include a link to the log zip - making sure the link permissions are set so anyone with the link can download.

    birty1 wrote:

    the original set-up was x-raid, i did attempt to change it to flex,

    If you did that after the drive failure, then that was a mistake.
- birty1
  Aspirant
  Jun 25, 2024
  the original set-up was x-raid, i did attempt to change it to flex, the damaged drive has limited options when highlighted
